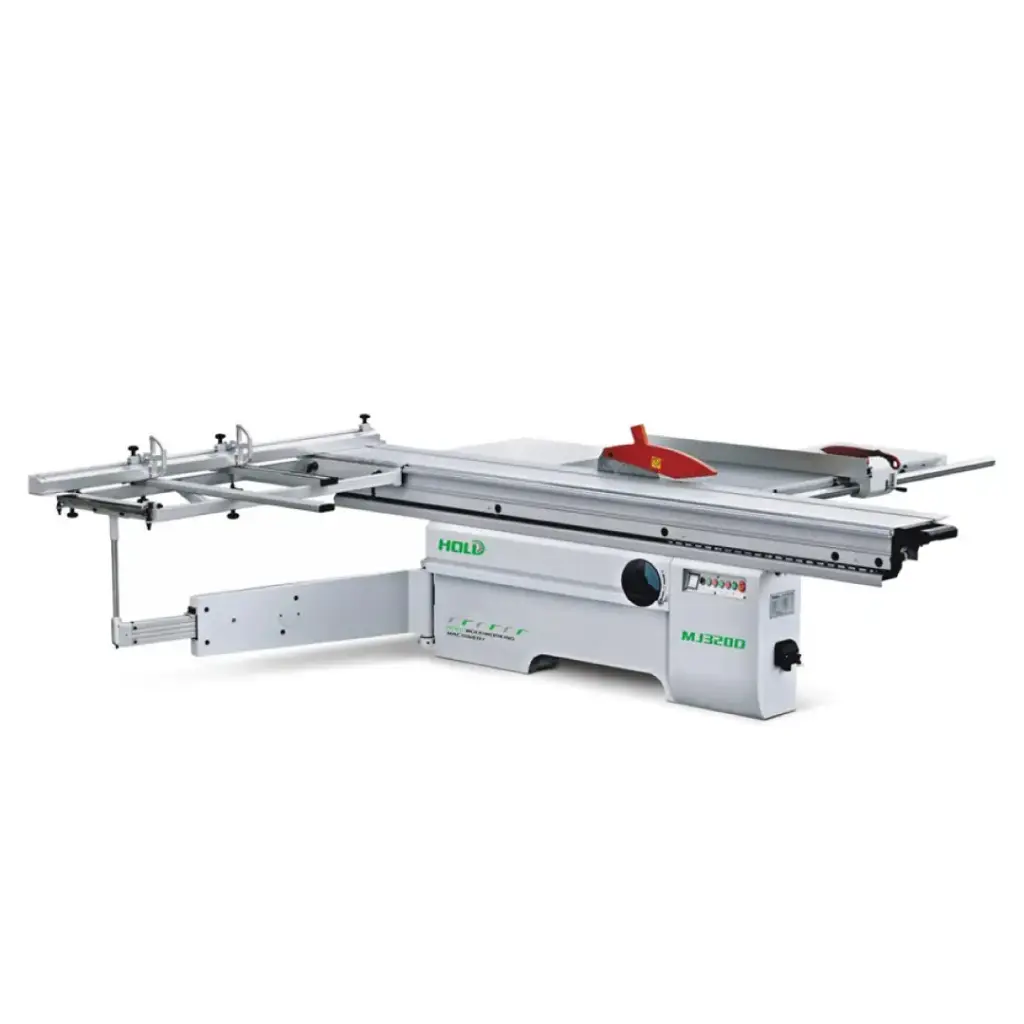

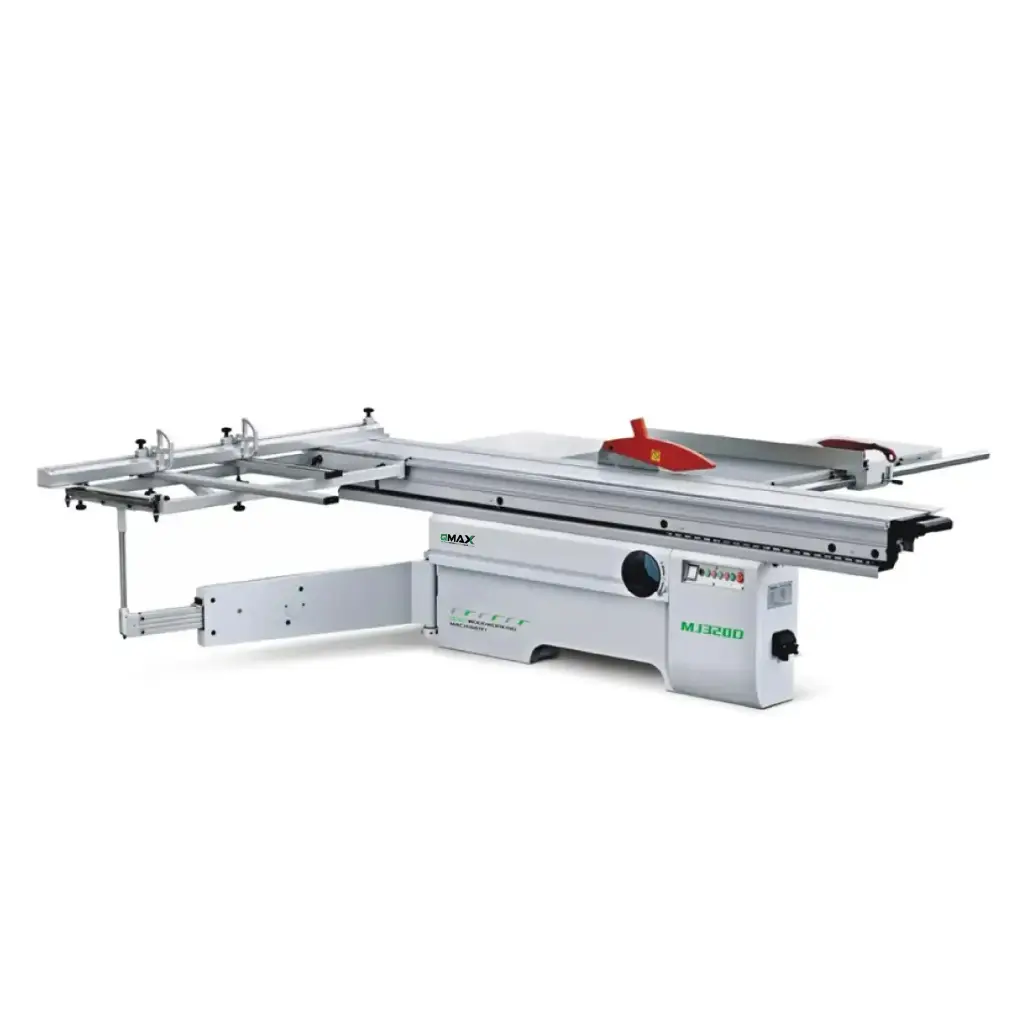

Sliding table saw D=430mm incl reinforcement bar, M=370mm,saw blade set main Z96 + scoring blade digital counter on rip fence

Table length: 3200 mm

Maximum diameter of main saw blade: 350 mm

Maximum cutting height: 90 mm

Scoring saw spindle speed: 8500 rpm

Main saw spindle speed: 4200 rpm

Scoring saw blade diameter: 120 × 20 mm

Main saw motor power: 5.5 kW

Scoring saw motor power: 0.75 kW

Total power: 6.35 kW

Packing: Steel platform for main body: 2250 × 1150 × 1220 mm

Wooden box for sliding table: 3300 × 460 × 290 mm

Machine wieght: 800 Kg
