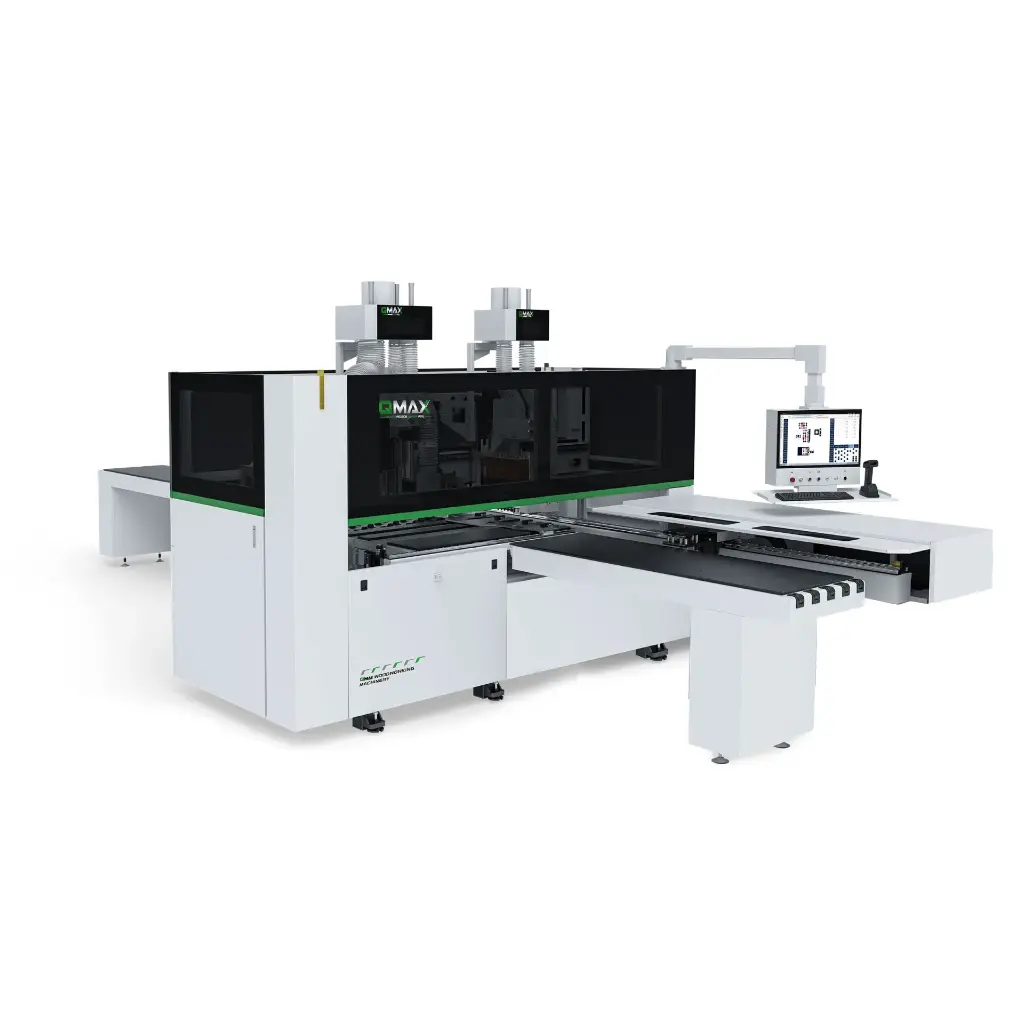

CNC drilling center (six-sided drilling)
Specifications:
An additional dust extraction device is installed in the middle position of the upper drill package to address surface dust issues.
The upper spindle is equipped with both a horizontal saw blade and a vertical milling cutter. A single motor can handle two types of processes: the saw blade can process side slots such as light grooves.
Supports importing DXF files for processing after drawing with CAD software.
Maximum cutting depth for side processing (saw blade): 8mm
Minimum cutting thickness for board material: 4mm
Minimum processing size for vertical drilling with dual drill packages: 64mm
Minimum processing size for horizontal drilling with dual drill packages: 188mm

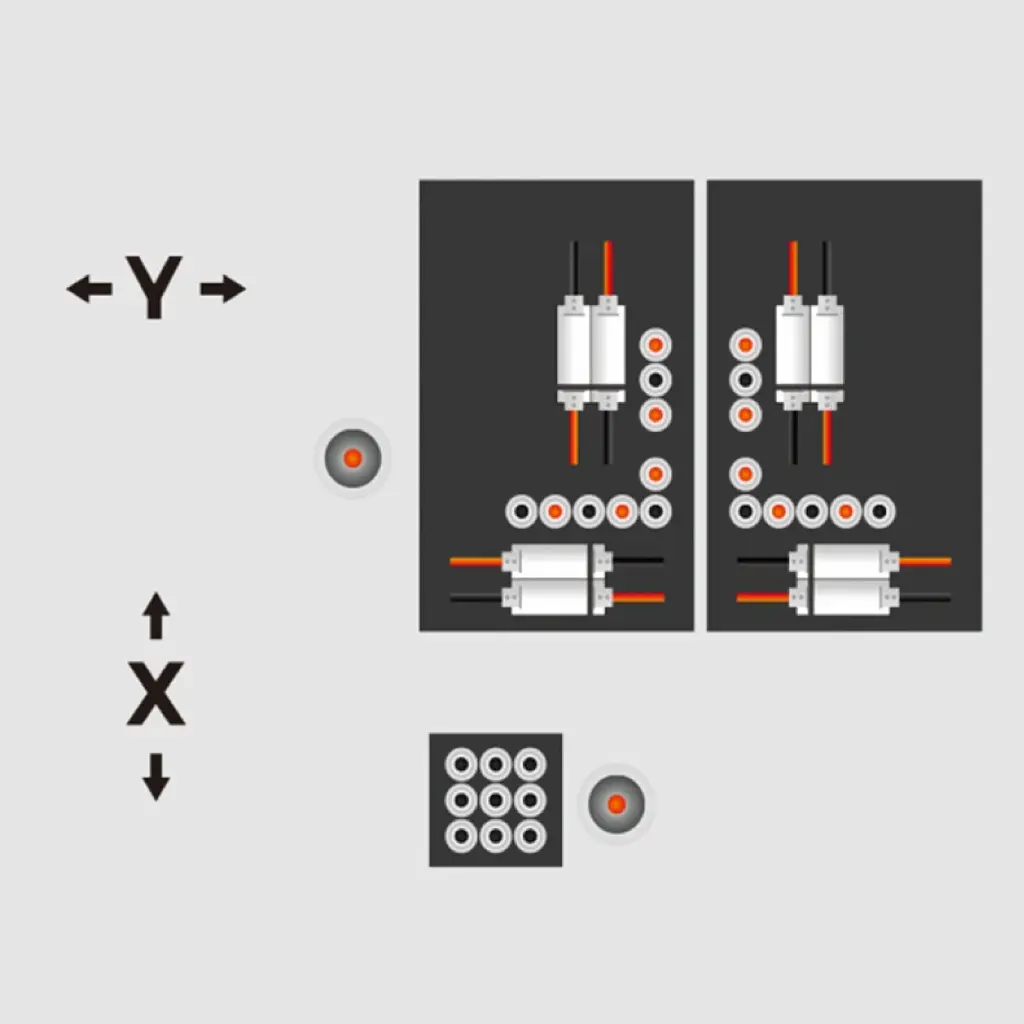

Drilling combination device
Upper vertical drills: 9 units x 2
Upper horizontal drills: X direction: (2+2) x 2 / Y direction: (2+2) x 2
Lower vertical drills: 9 units
An additional dust extraction device is installed in the middle position of the upper drill package to address surface dust issues.
The upper spindle is equipped with both a horizontal saw blade and a vertical milling cutter. A single motor can handle two types of processes: the saw blade can process side slots such as light grooves.
Supports importing DXF files for processing after drawing with CAD software.
Maximum cutting depth for side processing (saw blade): 8mm
Minimum cutting thickness for board material: 4mm
Minimum processing size for vertical drilling with dual drill packages: 64mm
Minimum processing size for horizontal drilling with dual drill packages: 188mm
Drilling combination device
Upper vertical drills: 9 units x 2
Upper horizontal drills: X direction: (2+2) x 2 / Y direction: (2+2) x 2
Lower vertical drills: 9 units
